Building a Local Azure Function Queue Pipeline with Azurite

Source code on GitHub → mcawalsh/functionapp-purchase-processor

Getting Started

As part of my prep for the AZ-204 exam I wanted to play around a little with Azure Function Apps to refresh my memory. It’s been a long time since I worked with Function Apps and I’m sure a lot of things have changed so I thought it was going to be a fun little playground.

The first thing I did was settle on an idea and what I settled on was a mini purchase processing pipeline. It’s a little contrived and at some points you have to just accept that this is a learning experience and isn’t going to fully match the real world flows.

So, the flow:

1. Input queue message - Purchase Created
2. Function processes the message
   Logs receipt of the purchase
3. Sends new message to output queue, purchase-processed

To do all of this and because in this instance I do not want to host everything in Azure I’m going to emulate Storage Queues using Azurite and CosmosDB using the Azure Cosmos DB emulator. Since I’ve never used these emulators before I thought, “Why not? What’s another new thing in the list?”

🧱 Architecture Overview

Azurite Queue (Purchases)
        ↓
   Azure Function
        ↓
Azurite Queue (ProcessedPurchases)

Function App

One of the first decisions I had to make was to choose what type of Function App model I was going to run with. In-Process or Isolated.

In-Process the function runs in the same process as the Azure Functions runtime, you use attributes like [FunctionName] and [QueueTrigger] directly on methods, and I believe it is more likely to be questioned on the AZ-204 exam.

Isolated functions run in a separate process. It uses DI and Program.cs sets up the services. The attribute model is similar but class bassed, e.g. [Function("FuncName")]

I decided to use the In-Process model because it runs directly inside the Azure Functions runtime and aligns closely with how triggers and bindings are described in the AZ-204 exam.

Prereqs

1. VSCode Extensions
   • Azurite
2. Azure Storage Explorer

Step 1. Set Up Azurite (Azure Storage Emulator)

1. After installing the Azurite as a VSCode extension, CTRL+SHIFT+P -> Azurite: Start
2. Get Azure Storage Explorer.
3. Connect to Azure Storage Explorer

Step 2. Run the QueueMessageSender

The QueueMessageSender is a console app that will ask for a customer name, number of items, and then a name, quantity, and price for each item. Then it will send it to the products queue.

dotnet build
dotnet run

Step 3. Function App

Next I created the Azure Functions project and added a queue trigger.

func init PurchaseProcessor --worker-runtime dotnet --target-framework net8.0
cd PurchaseProcessor

func new --name ProcessPurchase --template "Queue trigger"

This created the ProcessPurchase.cs file which I updated with the following.

This attribute sets the return queue

[return: Queue("purchases-processed", Connection = "AzureWebJobsStorage")]

And then updating the QueueTrigger attribute to target the purchases queue.

public void Run([QueueTrigger("purchases", Connection = "AzureWebJobsStorage")] string queueMessage, ILogger log)

One thing to note here is that because I’m not base64 encoding my strings when sending them with my console app I needed to make sure I updated the host.json file with the following so that it could accept it when triggering the function.

"extensions": {
  "queues": {
    "messageEncoding": "none"
  }
},

[!NOTE] If something goes wrong when you’re trying to process the message then by default after 5 attempts the message will be sent to a -poison queue. So in this instance if a message fails from the purchases queue then it will be moved to a purchases-poison queue.

Run the app:

func start

Flow Summary:

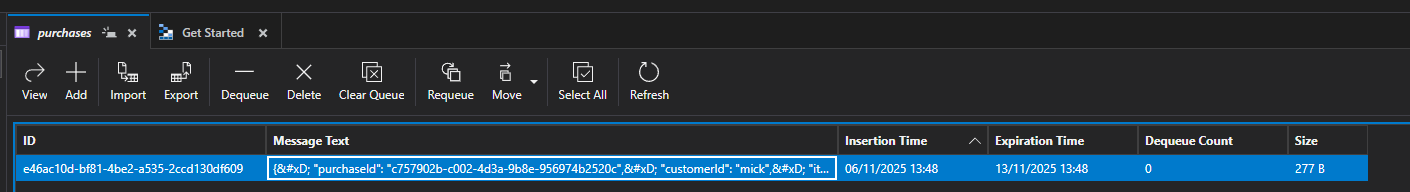

QueueMessageSender → “purchases” queue

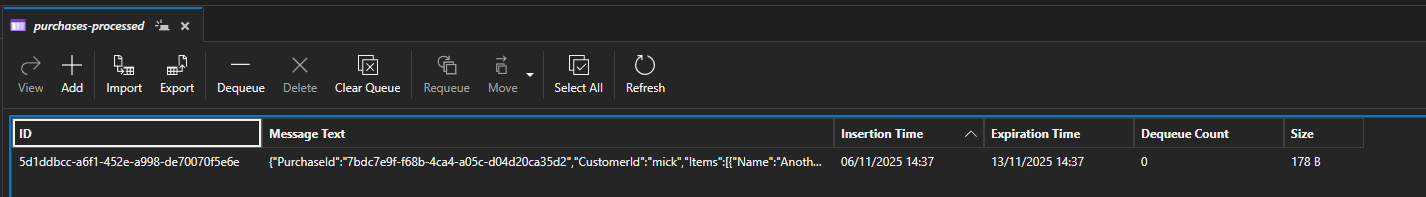

Azure Function (ProcessPurchase) → “purchases-processed” queue

🏁 Wrapping Up

With Azurite and the Azure Functions Core Tools, we can simulate real Azure event-driven flows locally — no cloud resources required. This setup gives a great sandbox for experimenting with triggers, bindings, and message processing, and it mirrors the kind of architecture covered in the AZ-204 exam.

I will say that getting Azurite to work as expected was not an easy process. I flipped between a Docker version and the VSCode extension managed version before getting it to work. (I think I spent more time with Azurite than I did with the function app) It’s all worth it in the end and I think I have refreshed my memory enough.
